The visual builder

The builder is a canvas of nodes connected by wires: each node does one thing and each wire says what comes next. A prospect enters through the trigger and walks the path to the end.

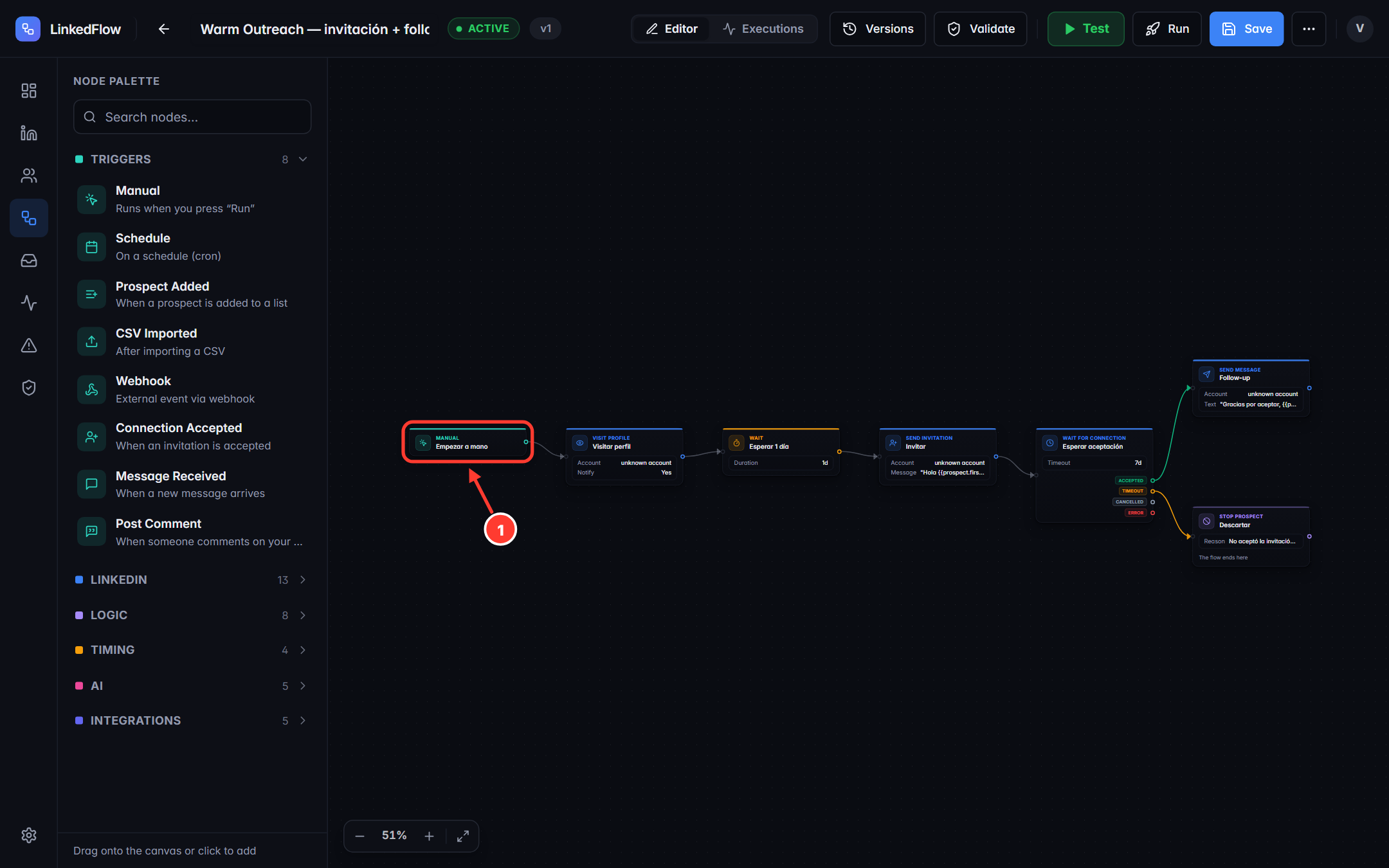

The builder with the palette on the left and the canvas with nodes, with the trigger node highlighted
The builder with the “Warm Outreach” template.
  1. The trigger: every workflow starts with exactly one trigger node (here, a manual start).

The pieces of the screen

  • Top bar: editable name, state (draft/active/paused), the Editor and Executions tabs, and the actions Versions · Validate · Test · Run · Save, plus the “⋯” menu to activate or pause.
  • Node palette (left): search for a node and drag it onto the canvas, or click to add it. They're grouped: triggers, LinkedIn, logic, timing, AI and integrations — each one is detailed in the node catalogue.
  • The canvas: connect a node's output to the next node's input by dragging the wire. Double-clicking a wire deletes it; the Del key deletes the selection; the zoom control lives at the bottom left.

Configuring a node

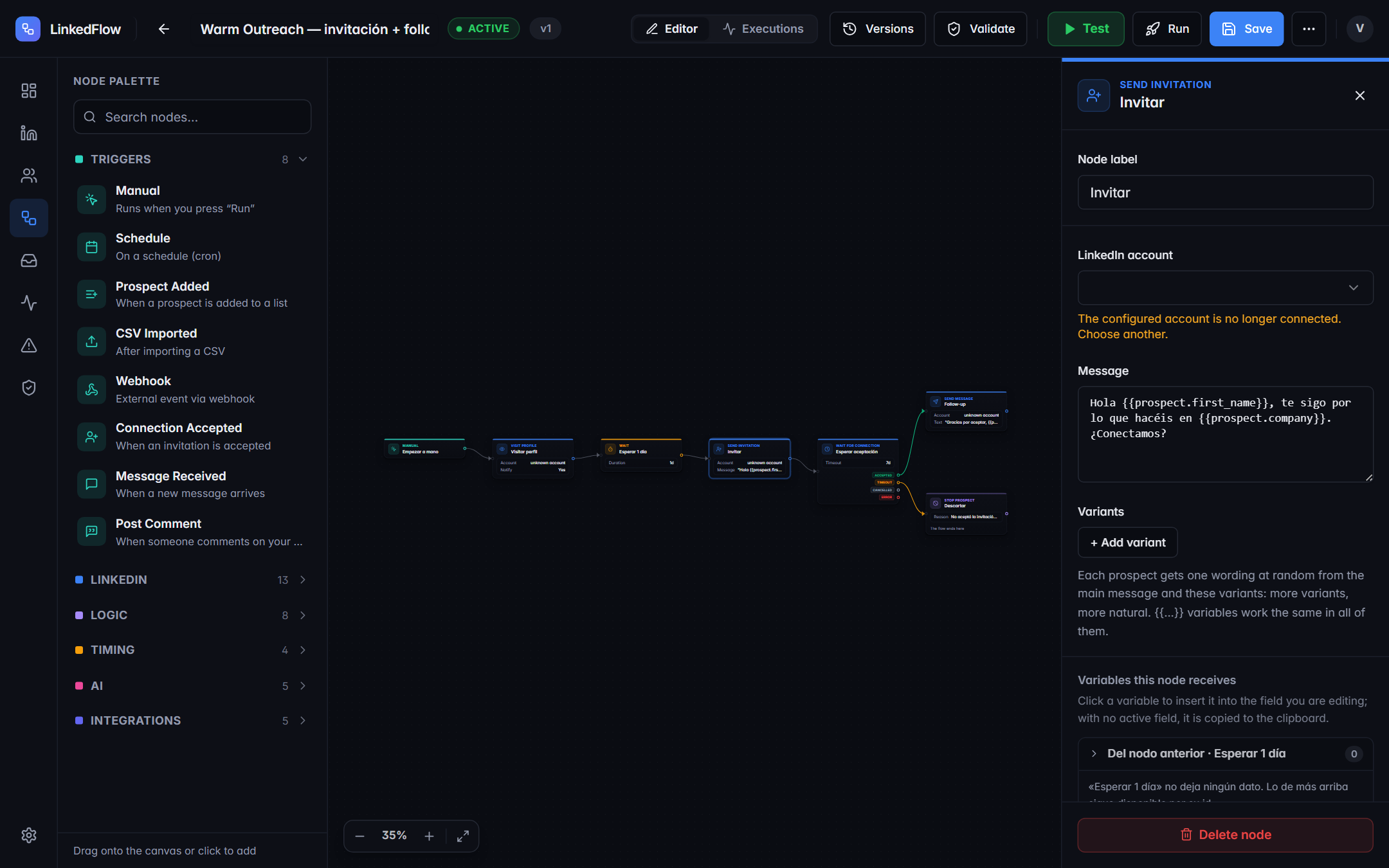

Configuration panel for an invitation node
Click a node → its configuration panel on the right.

Each node asks for its own things: the account that runs it, the message text, the wait duration… Two cross-cutting tools:

  • Variables: write {{prospect.first_name}}, {{prospect.company}} or {{previous.text}} and the engine substitutes each prospect's real data. The panel shows the variables available at that point of the journey.
  • Text variants: in messages and notes you can write several versions that rotate between prospects. The choice is stable: if an action is retried, that person receives exactly the same variant.

Validate

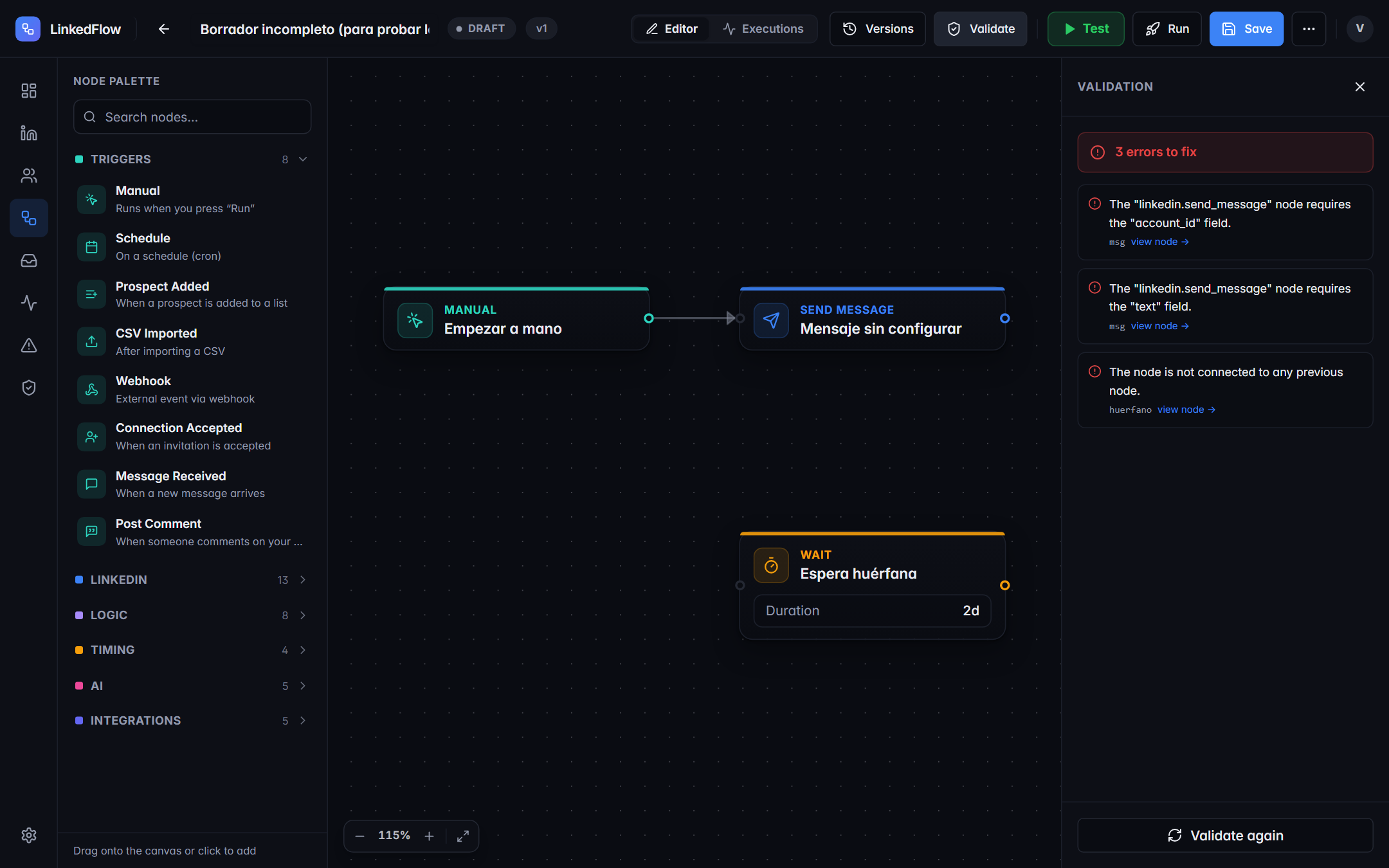

Validation panel with errors highlighted in the example workflow
Validation on the example draft with deliberate errors.

The Validate button goes over the whole workflow and lists each problem with its node: empty required fields, variables that don't exist, nodes with no incoming wire, more than one trigger, a schedule trigger without a search behind it… Validation is blocking: until it reaches zero, the workflow cannot be activated.

Parallel branches are not supported: from a single output only the first wire is followed. To do two things “at once”, chain them in series; for alternative paths use the IF/Switch nodes.

Test (dry run)

The green Test button runs the workflow dry: no node touches LinkedIn. The journey is narrated step by step in your language on the canvas itself, with bubbles anchored to each node; at branches it asks “what would happen?” and you choose the path to follow. It's the safe way to check copy, variables and paths before risking a single invitation.

Run

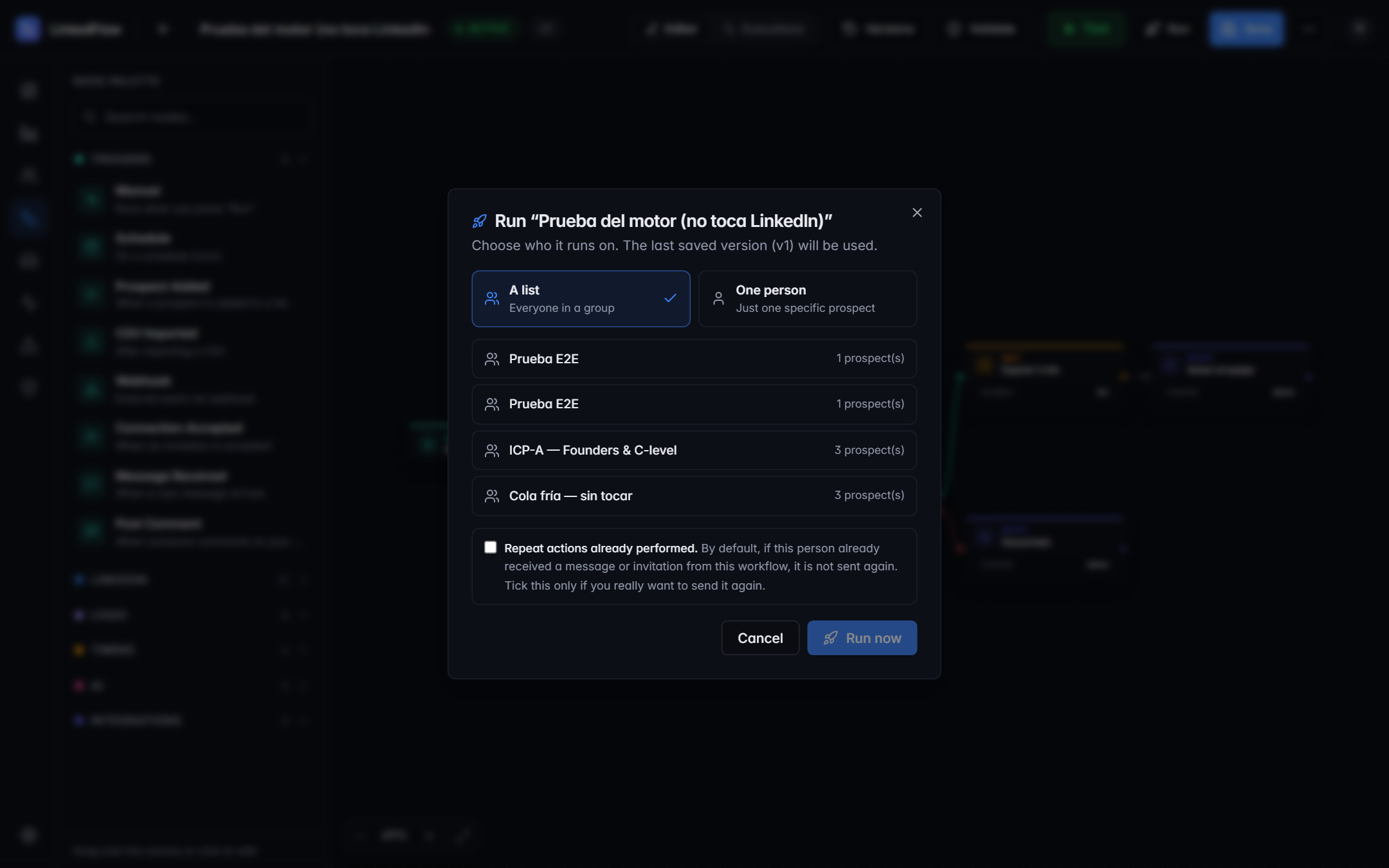

Workflow run dialog
Run: choose the audience and launch.

Run launches the workflow for real on the audience you choose (a list, a selection of prospects). It requires a saved version and the MANAGER role. From that moment, each prospect advances in their own independent execution — tracking lives in Executions.

The webhook trigger

If the workflow starts with “Webhook”, its panel shows a URL with a unique token: make a POST to that URL from your CRM or your favourite tool and the workflow starts for the given prospect. Two important things:

  • The webhook does not create prospects: it looks up one that already exists in the CRM by its public identifier, LinkedIn URL or email.
  • The token is the credential: treat it like a password. Only MANAGER roles or above can see it.
